High Voltage Rail To Rail Output Operational Amplifiers Integrated Circuit IC
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান চীন |
| পরিচিতিমুলক নাম: | UCHI |
| সাক্ষ্যদান: | Completed |
| মডেল নম্বার: | SGM8271/8272/8274 |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1000pcs |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| প্যাকেজিং বিবরণ: | স্ট্যান্ডার্ড |
| ডেলিভারি সময়: | 3 উইকস |
| পরিশোধের শর্ত: | টি/টি, ওয়েস্টার্ন ইউনিয়ন |
| যোগানের ক্ষমতা: | 5000pcs |
|
বিস্তারিত তথ্য |
|||
| সরবরাহ ভোল্টেজ: | 40 ভি | ইনপুট কমন মোড ভোল্টেজ পরিসীমা: | (-VS) - 0.1V থেকে (+VS) - 1.5V |
|---|---|---|---|
| ইনপুট/আউটপুট ভোল্টেজ পরিসীমা: | (-Vs) - 0.3V থেকে ( + vs) + 0.3V | ডিফারেনশিয়াল ইনপুট ভোল্টেজ: | 1.5V |
| সন্ধি তাপমাত্রা: | +150℃ | স্টোরেজ তাপমাত্রা পরিসীমা: | -65℃ থেকে +150℃ |
| সীসার তাপমাত্রা (সোল্ডারিং, 10 সেকেন্ড): | +260℃ | এইচবিএম: | 4000V |
| MM (SGM8271/2): | 150V | MM (SGM8274): | 300 ভি |
| অপারেটিং তাপমাত্রা পরিসীমা: | -40 ℃ থেকে +85 ℃ ℃ | ||
| বিশেষভাবে তুলে ধরা: | high voltage operational amplifiers,hv op amp ic,high voltage rail to rail op amp |
||
পণ্যের বর্ণনা

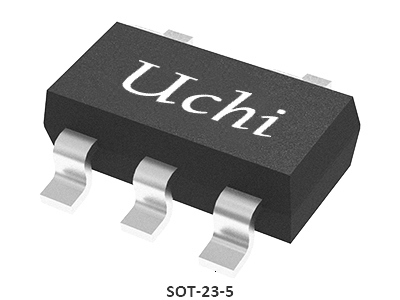

High Voltage Rail-to-RailOutput Operational Amplifiers Integrated Circuit IC
The SGM8271 (single), SGM8272 (dual) and SGM8274(quad) are high voltage operational amplifiers, whichcan operate from 4.5V to 36V single supply or from±2.25V to ±18V dual power supplies. They provide awide input common mode voltage range and rail-to-railoutput voltage swing.The SGM8271/2/4 provide high slew rate, low offset,drift and bias current.The SGM8271 is available in Green SOT-23-5,MSOP-8 and SOIC-8 packages. The SGM8272 isavailable in Green SOIC-8 and MSOP-8 packages. TheSGM8274 is available in Green SOIC-14 and TSSOP-14packages. They are specified over the extended -40℃to +125℃ temperature range.
Key Features
• Rail-to-Rail Output
• Wide Input Common Mode Voltage Range
• Low Offset Voltage: 3mV (MAX)
• Low Input Bias Current
• Low Input Offset Current
• Low Quiescent Current: 150µA/Amplifier
• Output Short-Circuit Protection• High Input Impedance
• High Slew Rate: 7V/µs
• Small Packaging:SGM8271 Available in Green SOT-23-5, MSOP-8and SOIC-8 PackagesSGM8272 Available in Green MSOP-8 and SOIC-8PackagesSGM8274 Available in Green TSSOP-14 and SOIC-14Packages
Applications
High Impedance Sensor
Precision Instrumentation
Photodiode Amplifier
Phase-Locked Loop Filter
High End, Professional Audio
Medical
ATE
DAC Output Amplifier
Precision Instrumentation
Photodiode Amplifier
Phase-Locked Loop Filter
High End, Professional Audio
Medical
ATE
DAC Output Amplifier

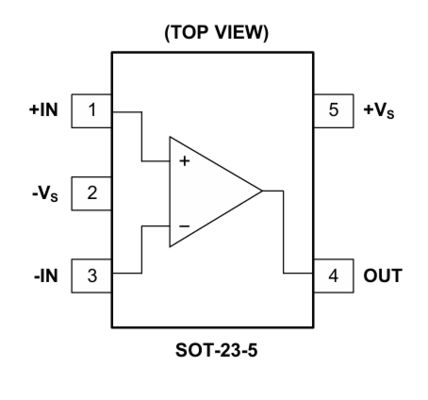

Pin Configurations
Product Selection Guide
| Amplifiers per Package | Part Number | IQ/Amp Typ (μA) | Shut-down | VCC(V) | GBP Typ (kHz) | Slew Rate Typ (V/ms) | ENOISE 0.1Hz ~ 10Hz (μVPP) | ENOISE Typ @1kHz (nV/√Hz) | VOS Max @25℃ (mV) | TC of VOS Typ (μV/℃) | IB Typ (pA) | AVO Typ (dB) | CMRR Typ (dB) | Rail-to-Rail Input | Rail-to-Rail Output | Package | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SGM8271 | 150 | No | 4.5~36 | 1.4 | 7000 | 43 | 3 | 3 | 20 | 100 | 95 | No | Yes |
SOT-23-5,SOIC-8,MSOP-8
|
1.4MHz, 7V/μs, Low Power, Rail-to-Rail Output
|
|
| 2 | SGM8272 | 150 | No | 4.5~36 | 1.4 | 7000 | 43 | 3 | 3 | 20 | 100 | 95 | No | Yes |
SOIC-8,MSOP-8
|
1.4MHz, 7V/μs, Low Power, Rail-to-Rail Output
|
|
| 4 | SGM8274 | 150 | No | 4.5~36 | 1.4 | 7000 | 43 | 3 | 3 | 20 | 100 | 95 | No | Yes |
SOIC-14,TSSOP-14
|
1.4MHz, 7V/μs, Low Power, Rail-to-Rail Output
|
|
| 1 | SGM8521 | 5.5 | No | 2.1~5.5 | 0.15 | 50 | 85 | 3.5 | 2 | 3 | 110 | 87 | Yes | Yes |
SOT-23-5,SOIC-8
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 2 | SGM8522 | 5.5 | No | 2.1~5.5 | 0.15 | 50 | 85 | 3.5 | 2 | 3 | 110 | 87 | Yes | Yes |
SOIC-8,MSOP-8
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 4 | SGM8524 | 5.5 | No | 2.1~5.5 | 0.15 | 50 | 85 | 3.5 | 2 | 3 | 110 | 87 | Yes | Yes |
SOIC-14,TSSOP-14
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 1 | SGM8531 | 18 | No | 2.1~5.5 | 0.5 | 200 | 33 | 3.5 | 1.7 | 0.5 | 104 | 75 | Yes | Yes |
SOT-23-5,SOIC-8
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 2 | SGM8532 | 18 | No | 2.1~5.5 | 0.5 | 200 | 33 | 3.5 | 1.7 | 0.5 | 104 | 75 | Yes | Yes |
SOIC-8,MSOP-8
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 4 | SGM8534 | 18 | No | 2.1~5.5 | 0.5 | 200 | 33 | 3.5 | 1.7 | 0.5 | 104 | 75 | Yes | Yes |
SOIC-14,TSSOP-14
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 1 | SGM8535 | 80 | No | 1.8~5.5 | 1.5 | 800 | 30 | 3.4 | 1.5 | 3 | 103 | 85 | No | Yes |
SOT-23-5,SC70-5,SOIC-8,MSOP-8
|
1.5MHz, 1.8V, Unity-Gain Stable, Rail-to-Rail Output
|
|
| 2 | SGM8536 | 80 | No | 1.8~5.5 | 1.5 | 800 | 30 | 3.4 | 1.5 | 3 | 103 | 85 | No | Yes |
SOIC-8,MSOP-8
|
1.5MHz, 1.8V, Unity-Gain Stable, Rail-to-Rail Output
|
|
| 1 | SGM8537 | 80 | Yes | 1.8~5.5 | 1.5 | 800 | 30 | 3.4 | 1.5 | 3 | 103 | 85 | No | Yes |
SOT-23-6,SOIC-8,MSOP-8
|
1.5MHz, 1.8V, Unity-Gain Stable, Rail-to-Rail Output
|
|
| 4 | SGM8538 | 80 | No | 1.8~5.5 | 1.5 | 800 | 30 | 3.4 | 1.5 | 3 | 103 | 85 | No | Yes |
SOIC-14,TSSOP-14
|
1.5MHz, 1.8V, Unity-Gain Stable, Rail-to-Rail Output
|
|
| 1 | SGM8541 | 46 | No | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 80 | Yes | Yes |
SOT-23-5,SOIC-8,SC70-5
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 2 | SGM8542 | 46 | No | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 80 | Yes | Yes |
SOIC-8,MSOP-8,TSSOP-8
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 1 | SGM8543 | 48 | Yes | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 76 | Yes | Yes |
SOT-23-6,SOIC-8
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 4 | SGM8544 | 46 | No | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 80 | Yes | Yes |
SOIC-14,TSSOP-14
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 1 | SGM8545 | 48 | No | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 76 | Yes | Yes |
SOT-23-5
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
