Radiator-Integrated Liquid Cooling Plate Integrated Heat Dissipation Fins
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান, গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | Uchi |
| সাক্ষ্যদান: | SMC |
| মডেল নম্বার: | তাপ সিঙ্ক |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 100 পিসি |
|---|---|
| মূল্য: | 1300-1500 dollars |
| ডেলিভারি সময়: | সীমাবদ্ধ নয় |
| পরিশোধের শর্ত: | টি/টি, পেপ্যাল, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম |
| যোগানের ক্ষমতা: | প্রতি মাসে 50000000pcs |
|
বিস্তারিত তথ্য |
|||
| হিটসিঙ্ক উপাদান: | অ্যালুমিনিয়াম | সারফেস ফিনিশ: | মিল ফিনিস বা anodization |
|---|---|---|---|
| উপাদান: | কপার/অ্যালুমিনিয়াম | ফ্যান জীবন: | 100000 ঘন্টা |
| গভীর প্রক্রিয়া: | সিএনসি মেশিনিং | কন্ডাক্টিং পাওয়ার: | 2000 W |
| সহনশীলতা: | ±1% | অতিরিক্ত প্রক্রিয়া: | সিএনসি মেশিনিং |
| যথার্থতা: | ±0.002 ~ ±0.005 মিমি | সর্বোচ্চ চাপ: | 5 বার |
| অপারেটিং তাপমাত্রা পরিসীমা: | -40°C থেকে 120°C | উপাদানের টেক্সচার: | 6061 |
| বিশেষভাবে তুলে ধরা: | Radiator-integrated liquid cooling plate,Liquid cooling plate with heat dissipation fins,High-performance liquid cooling radiator plate |
||
পণ্যের বর্ণনা

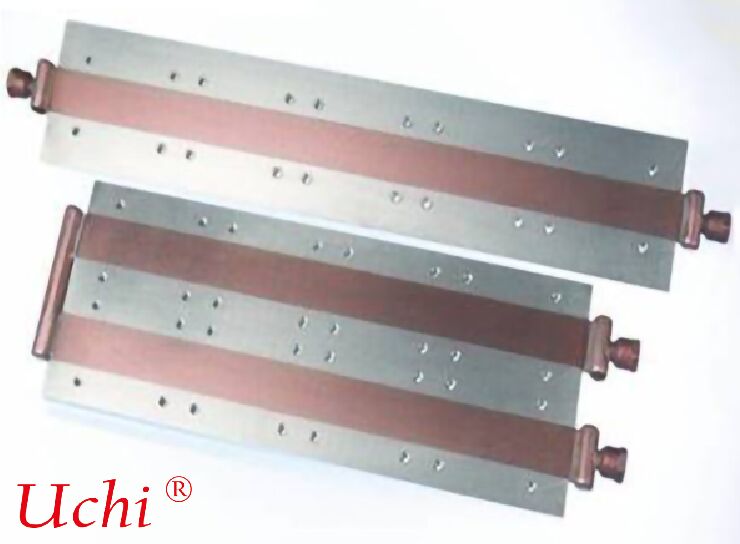

Radiator-Integrated Liquid Cooling Plate
In simple terms: Radiator-Integrated Liquid Cooling Plate = Liquid cooling plate + integrated heat dissipation fins
It attaches to heat-generating devices on one side and features dense fins on the other. Heat is transferred to the fin area via coolant circulation, forming a compact, all-in-one liquid cooling solution.
I. Structural Features
Bonding Surface (Cold Plate Side)
Flat surface that directly attaches to IGBTs, power modules, batteries, motors and other heat-generating components.
Fin Heat Dissipation Side (Radiator Side)
Internal flow channels extend into the dense fin region, forming a structure similar to a radiator.
As coolant flows through, heat is carried to the fins and dissipated via air cooling or natural convection.
Fully Integrated Structure
Mostly manufactured as one piece through skiving, die-casting or brazing,
eliminating the complex assembly of separate radiators and water tubes.
II. Working Principle
- Heat from components → conducts to the liquid cooling plate base
- Coolant flows through internal channels and absorbs heat
- Heated coolant flows into the finned radiator section
- Fins release heat into the environment via fans or natural airflow
- Cooled coolant circulates back to repeat the process
It is a hybrid solution combining liquid cooling heat transfer and air cooling final dissipation.
III. Core Advantages
-
Compact structure & high integrationAll-in-one design saves space, reduces connectors and leakage points.
-
Simple installationDirectly mounted to components; only an external pump and reservoir are needed, no extra radiator required.
-
Uniform heat dissipationExcellent temperature uniformity on the base plate, avoiding local hotspots.
-
High reliabilityBrazed or skived structure provides strong vibration resistance, ideal for automotive and industrial control applications.
IV. Common Manufacturing Processes
-
Skived Radiator-Integrated Liquid Cooling PlateFins and flow channels machined from a single aluminum block, offering high strength and continuous thermal conductivity.
-
Vacuum Brazed TypeBase plate and fins joined by brazing, with denser fins and larger heat dissipation area.
-
Integral Die-Casting TypeSuitable for mass production and low cost, widely used in passenger vehicle thermal management.
V. Typical Applications
- New energy vehicles: integrated cooling for motors, ECU, OBC, DC-DC converters
- Energy storage converters (PCS), photovoltaic inverters
- Industrial servo drives, high-power power supplies
- Laser equipment, welding machines, high-frequency power supplies
- Construction machinery, commercial vehicle controller cooling
VI. Difference from Standard Liquid Cooling Plates
- Standard liquid cooling plate: only absorbs and transfers heat; does not dissipate heat directly to the environment.
- Radiator-integrated liquid cooling plate: absorbs heat, circulates internally, and dissipates heat via its own fins, forming a complete compact cooling system.
