Three-tank Disc Coating And Painting Machine For Varistor Production Equipment
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান ， গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | UCHI |
| সাক্ষ্যদান: | SGS.UL |
| মডেল নম্বার: | YC-C |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 5000pcs |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| প্যাকেজিং বিবরণ: | বাল্ক |
| ডেলিভারি সময়: | 5-7 দিন |
| পরিশোধের শর্ত: | টি/টি, পেপাল, ওয়েস্টার্ন ইউনিয়ন, মানি গ্রাম |
| যোগানের ক্ষমতা: | প্রতি মাসে 5000,000,000PCS |
|
বিস্তারিত তথ্য |
|||
| বিশেষভাবে তুলে ধরা: | three-tank disc coating machine,varistor painting equipment,metal oxide varistor production machine |
||
|---|---|---|---|
পণ্যের বর্ণনা
Three-tank Disc Coating And Painting Machine For Varistor Production Equipment
This specialized three-tank coating machine is designed for efficient varistor production, featuring sequential heating and coating processes with precise temperature control and automated powder application.
Process Flow
- Front buffer rack
- First box heating
- First plate coating with powder
- Second box heating
- Second plate coating with powder
- Third box heating
- Third round disc coating
- Fourth box fluidization with external fan cooling
- Cold air cooling
- Buffering
- Cutting off
Technical Specifications
| Parameter | Value |
|---|---|
| Machine Length | Approximately 6.5 meters |
| Total Weight | Approximately 1,000 kg |
| Model | YC-C (Three-tank coating) |
| Product Pitch | 10mm |
| Encapsulation Thickness | 0.5mm (single-sided) |
| Coating Foot Length | Controlled within 1.5mm (suitable for 20-35mm varistors) |
| Power Requirement | AC380V, three-phase five-wire (approximately 18kW) |
| Gas Source | Over 5kg |
Key Features
- Heating System: Heat sink type heating tubes with temperature range of 150-280°C

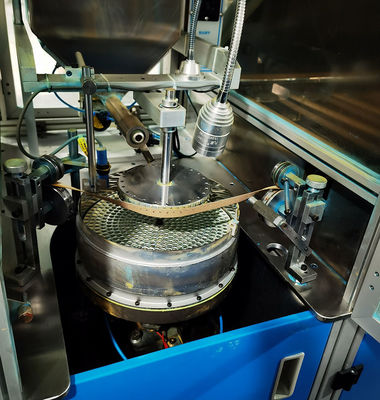

- Coating Method: Rotating disc dip coating with automatic powder feeding
- Powder Control: Photoelectric detection for precise powder level maintenance
- Safety Features: Warning device for box cover operation, high-temperature glass protection
- Construction: Aluminum profile frame with baked blue paint door panels
- Durability: Hard chromium plating on machine panels, anodic hardening for aluminum parts
- Warranty: 1-year comprehensive coverage (excluding human factors and natural disasters)
Equipment Visuals
Schematic Diagram of Three-tank Coating Machine

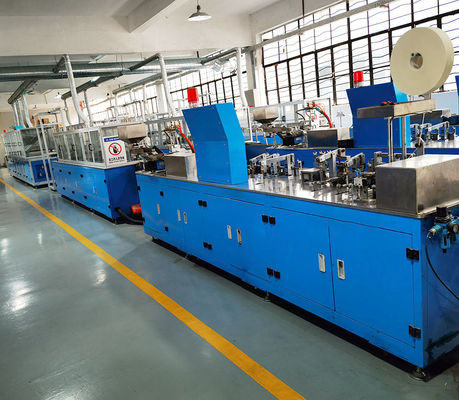

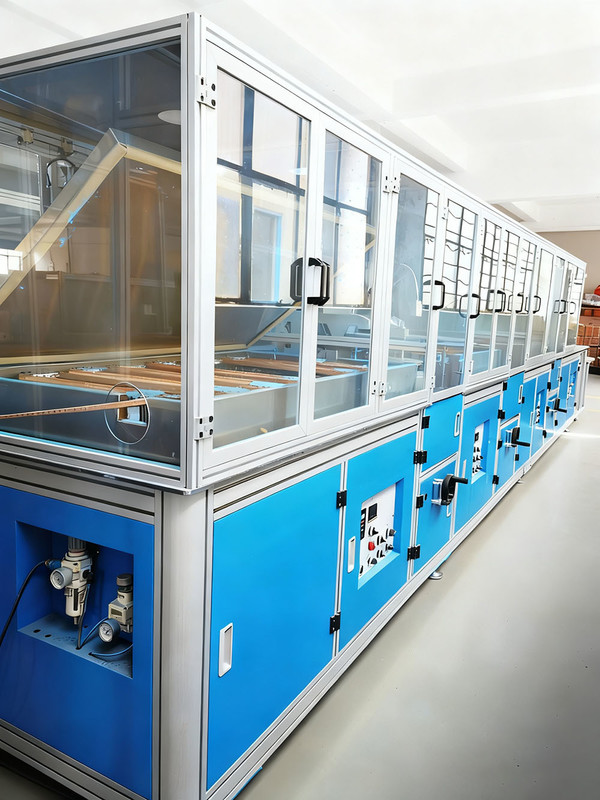

Actual Photo of Varistor Production Equipment
