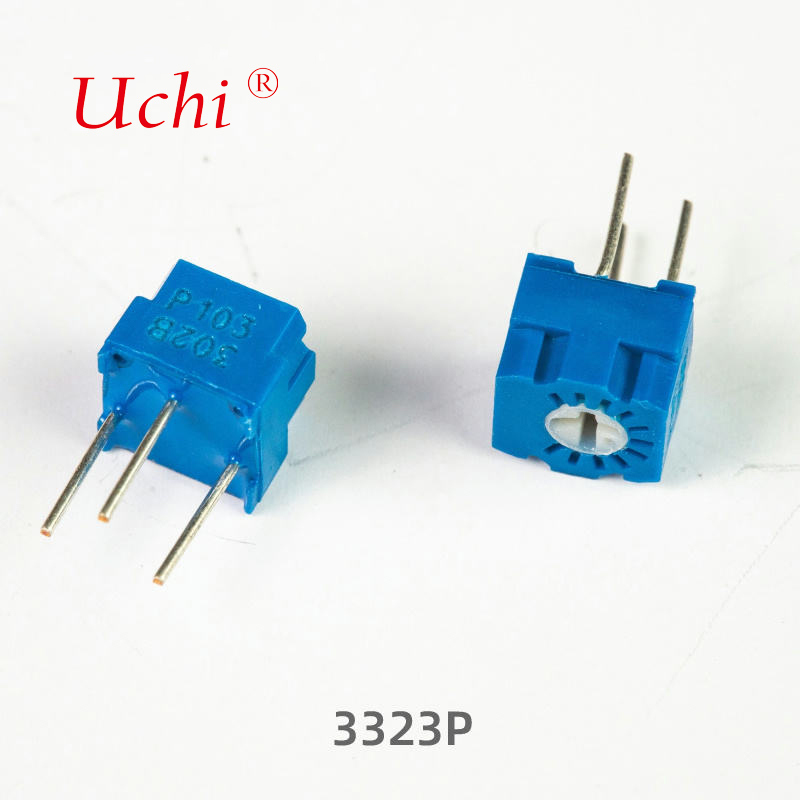

3323P Single-turn Metal Glass Glaze Fine-tuning Potentiometer 5k Precision Adjustable Resistor
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান ， গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | Uchi |
| সাক্ষ্যদান: | SMC |
| মডেল নম্বার: | 3323P |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 100 পিসি |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| পরিশোধের শর্ত: | টি/টি, পেপ্যাল, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম |
| যোগানের ক্ষমতা: | প্রতি মাসে 50000000pcs |
|
বিস্তারিত তথ্য |
|||
| নামমাত্র প্রতিরোধের পরিসীমা: | 5k | রেট পাওয়ার: | 0.5W ( 300V সর্বোচ্চ) |
|---|---|---|---|
| কার্যকর বৈদ্যুতিক ভ্রমণ: | ≥200° | মোট যান্ত্রিক ভ্রমণ: | 270°±10° |
| স্টপার টর্ক: | ≥50mN.m | টর্ক শুরু: | ≤20mN.m |
| টিসিআর: | ±250*10-6/°C | তাপমাত্রা পরিসীমা: | -55°C~+125°C |
| প্রতিরোধ সহনশীলতা: | ± 10% | আকার / মাত্রা: | 6.8*6.8MM |
| বিশেষভাবে তুলে ধরা: | single-turn metal potentiometer,precision adjustable resistor 5k,glass glaze fine-tuning potentiometer |
||
পণ্যের বর্ণনা
3323P Single-turn Metal Glass Glaze Fine-tuning Potentiometer 5k Precision Adjustable Resistor
The 3323P is a precision adjustable potentiometer featuring metal glass glaze technology. Designed for fine-tuning applications, this blue-colored component is rotated with a screwdriver and features three legs. Its robust construction makes it ideal for circuit protection devices and industrial controllers.
Key Features
- Three-leg design for screwdriver adjustment
- Distinctive blue color for easy identification
- Dual adjustment positions (high/low resistance) for circuit control
- Metal glass glaze construction for superior heat, corrosion, and impact resistance
- High-precision fine-tuning capability
- Excellent accuracy and stability for reliable circuit operation
- Wide compatibility with electronic equipment
Specification Parameters
| Electrical Characteristics | |
|---|---|
| Range of nominal resistance | 10Ω~5MΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 500V (DC or AC peak value) |
| Effective electrical travel | ≥200° |
| Environment Characteristics | |
|---|---|
| Rated power | 0.5W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R |
| Physical Characteristics | |
|---|---|
| Total mechanical travel | 270°±10° |
| Starting torque | ≤20mN.m |
| Stoper torque | ≥50mN.m |
| Standard package | 50 pcs /tube |
Product Size
Application Areas
This potentiometer is widely used in instrumentation, electrical appliances, audio equipment, communications, medical devices, security products, industrial control systems, televisions, telephones, office automation equipment, and information/communication devices.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
