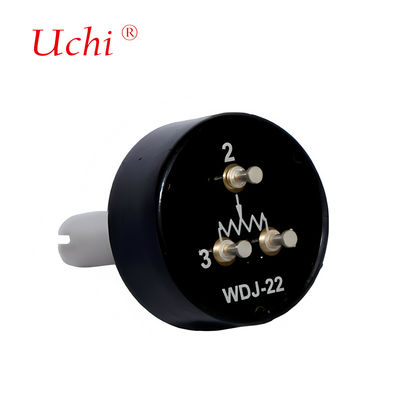

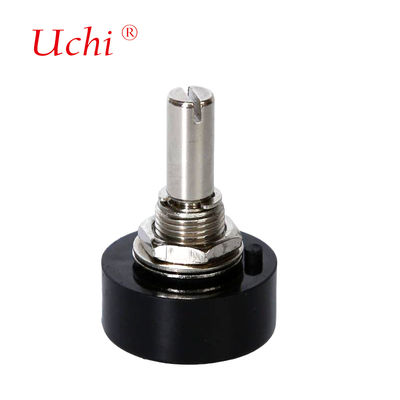

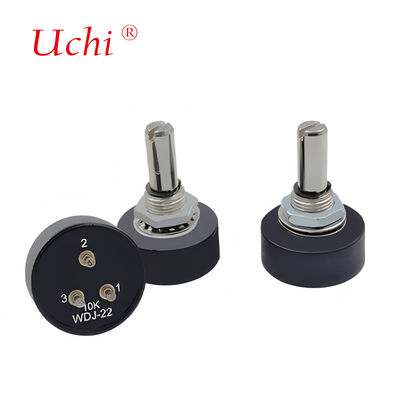

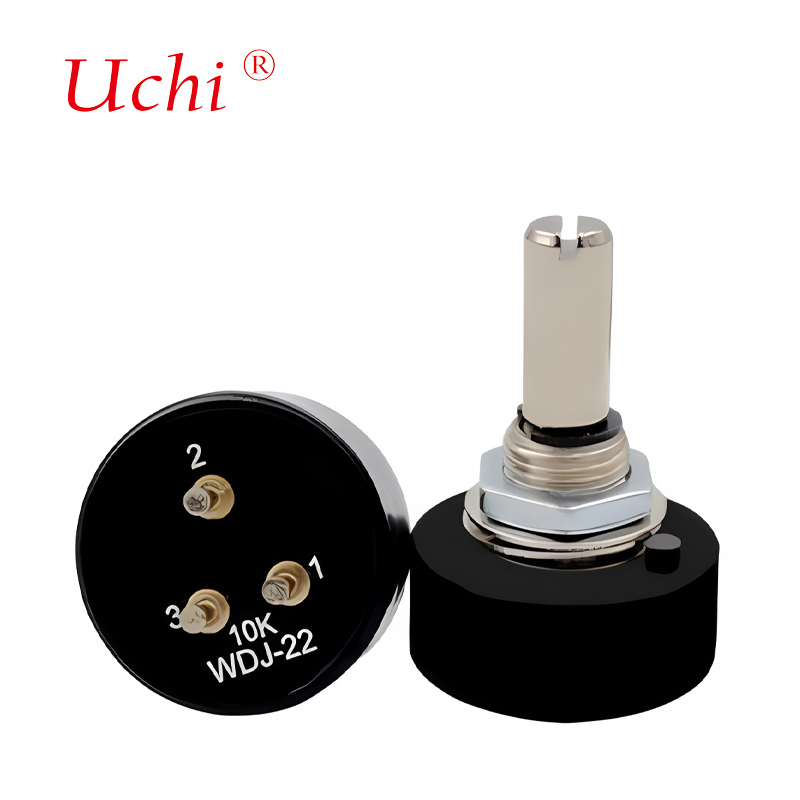

WDJ-22 Conductive Plastic Potentiometer 10k Angular Displacement Sensor
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান ， গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | Uchi |
| সাক্ষ্যদান: | SMC |
| মডেল নম্বার: | WDJ-22 |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 100 পিসি |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| পরিশোধের শর্ত: | টি/টি, পেপ্যাল, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম |
| যোগানের ক্ষমতা: | প্রতি মাসে 50000000pcs |
|
বিস্তারিত তথ্য |
|||
| প্রতিরোধ: | 1KΩ~10KΩ | প্রতিরোধ সহনশীলতা: | ± 10% |
|---|---|---|---|
| প্রতিরোধ শেষ করুন: | <3Ω | প্রতিরোধ টেপার: | খ |
| স্বাধীন লিনিয়ারিটি: | ± 0.5% | পাওয়ার রেটিং: | 0.5W(70℃)0W(120℃) |
| পিক নয়েজ (CRV): | <2% আরএন | ডাইলেট্রিক শক্তি: | 1000V 1 মিনিট |
| সামঞ্জস্য ভ্রমণ: | 90°120°200° 240° 300° 340° | রেজোলিউশন: | মূলত অসীম |
| সর্বাধিক ইনপুট ভোল্টেজ: | 200ভিডিসি | ||
| বিশেষভাবে তুলে ধরা: | 10k conductive plastic potentiometer,angular displacement sensor potentiometer,WDJ-22 precision potentiometer |
||
পণ্যের বর্ণনা
The WDJ-22 long-life angle sensor conductive plastic potentiometer is designed for accurate angle measurement applications. Featuring conductive plastic construction with precious metal brushes, this sensor delivers low-noise, smooth signal output for precise displacement measurement in applications such as joystick control rods and servo systems.
- Servo installation type for convenient use and installation
- 360° continuous rotation with 340° effective angle (customizable)
- Wide temperature range: -40℃ to +125℃
- Essentially infinite resolution
- High linearity: ±1% to ±0.15%
- Exceptional lifespan: 5 million cycles
- Output smoothness: <0.1%
- Rear terminal customization available
| Electrical Specifications | |
|---|---|
| Resistance Range | 1KΩ-10KΩ |
| Resistance Tolerance | ±10% Standard |
| End Resistance | <3Ω |
| Independent Linearity | ±0.5% |
| Power Rating | 0.5W(70℃)0W(120℃) |
| Peak Noise (C.R.V.) | <2%Rn |
| Dielectric Strength | 1000V 1minute |
| Adjustment Travel | 90°120°200° 240° 300° 340° |
| Insulation Resistance | 10M |
| Resolution | Essentially infinite |
| Maximum Input Voltage | 200VDC |
| Environmental Specifications | |
|---|---|
| Storage Temperature Range | -60℃~+125℃ |
| Operating Temperature Range | -60℃~+125℃ |
| Temperature coefficient | 500ppm/℃ |
| Load Life | 70℃ 1,000h ΔR/R≤±10% |
| Rotational Life | 1,000,000 times, ΔR/R≤±7% |
| IP Range | IP25 |
| Soldering Heat Resistance | (350℃ 3S)ΔR/R≤±2% |
| Temperature Cycle | (-25℃,+85℃ 30min/each,5 cycles) ΔR/R≤±10% |
| Vibration | 10-55Hz, 1.5mm amplitude, 3.directions ΔR/R≤±5% |
| Mechanical Specifications | |
|---|---|
| Mechanical Travel | 220° 320° 360° |
| Shaft Torque | 25~35gf*cm |
| Mounting Nut Torque | 15Kgf*cm |
| Shaft Runout | 0.15mm |
| Shaft End Play | (shaft length 30 mm)0.15mm |
| Shaft Radial Play | 0.15mm |
| Shaft Strength (push) | 125 N (12.75 kgf) min. |
| Shaft Strength (tensile) | 125 N (12.75 kgf) min. |
| Hardware | Washer, Lockwasher, Nut |
The WDJ-22 series angle sensor is ideal for applications requiring precise displacement measurement, including:
- Automotive servo systems
- Engineering machinery
- Aerospace devices and missile systems
- Aircraft radar antennas
- Injection molding machines
- Woodworking machinery
- Printing machines
- Electronic rulers
- Robotics
- Engineering monitoring systems
- Computer-controlled sports equipment
