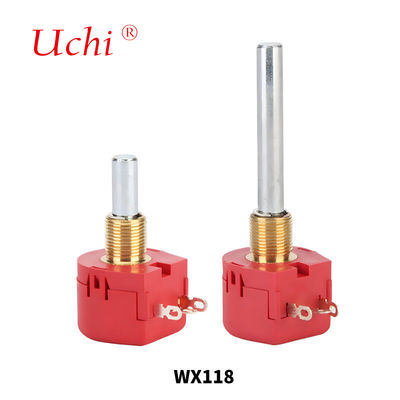

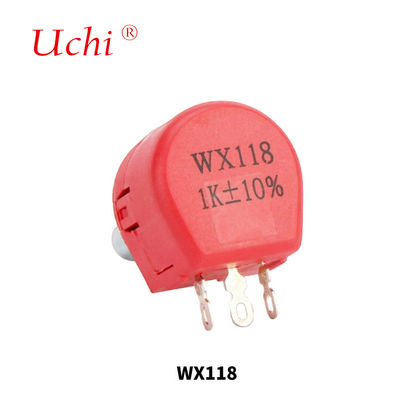

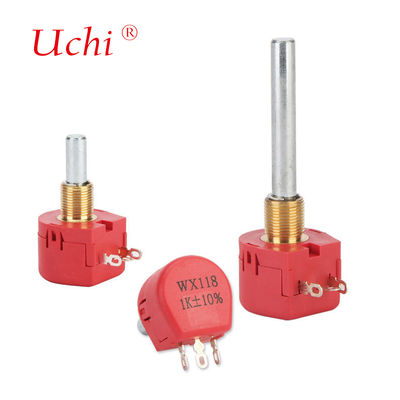

WX118 Wire-wound Rotary Potentiometer 5k Ohm 40mm Axis Single-turn Wire-wound Potentiometer
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান ， গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | Uchi |
| সাক্ষ্যদান: | SMC |
| মডেল নম্বার: | WX118 |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 100 পিসি |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| পরিশোধের শর্ত: | টি/টি, পেপ্যাল, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম |
| যোগানের ক্ষমতা: | প্রতি মাসে 50000000pcs |
|
বিস্তারিত তথ্য |
|||
| প্রতিরোধ: | 25Ω~25kΩ | প্রতিরোধ সহনশীলতা: | ±5%, ±10% |
|---|---|---|---|
| প্রতিরোধ শেষ করুন: | 2Ω সর্বোচ্চ | তাপমাত্রা পরিসীমা: | -55°C~+125°C |
| বৈদ্যুতিক কোণ: | 300 ° ± 5 ° | রেট পাওয়ার: | 160VAC ,1W:55℃, 0W:125℃ |
| দৈর্ঘ্য: | লম্বা হ্যান্ডেল 49 মিমি \ ছোট হ্যান্ডেল 23 মিমি | ||
| বিশেষভাবে তুলে ধরা: | 5k Ohm wire-wound potentiometer,40mm axis rotary potentiometer,single-turn precision potentiometer |
||
পণ্যের বর্ণনা
WX118 Wire-wound Rotary Potentiometer 5k Ohm 40mm Axis Single-turn Wire-wound Potentiometer
The WX118 single coil wire wound potentiometer is a precision variable resistance component for electronic devices, controlling current or voltage output through adjustable resistance. Its rotating axis modifies resistance by changing the number of wire turns in its single-coil winding configuration, making it ideal for precise small-range circuit adjustments.
This potentiometer offers high precision, durability, flexible regulation, cost-effectiveness, and broad applicability across various electronic applications.
Specification Parameters
ELECTRICAL CHARACTERISTICS
| RANGE OF NOMINAL RESISTANCE | 25Ω~25KΩ |
| RESISTANCE TOLERANCE | ±5% ±10% |
| INDEPENDENT LINEARITY | ±0.5% |
| TERMINAL RESISTANCE | ≤0.2% OR 2Ω |
| ROTATION NOISE | ≤3%R |
| WITHSTAND VOLTAGE | 1000AC |
| EFFECTIVE ELECTRICAL TRAVEL | 265°±5° |
ENVIRONMENTAL CHARACTERISTICS
| RATED POWER | 160VAC, 1W:55℃, 0W:125℃ |
| TEMPERATURE RANGE | -22℃~ +125℃ |
| TEMPERATURE COEFFICIENT | ±100ppm/℃ maximum / unit |
| COLLISION | 390m/S², 4000 cycles ΔR≤±1%R |
| VIBRATION | 10~500HZ, 0.75mm, 6h ΔR≤±1%R Electrical interruption≤100us |
| 55℃ Electrical durability | 1W, 1000h, ΔR≤±3%R |
| MECHANICAL ENDURANCE | 5,000 cycles ΔR≤±3%R |
| LIFE | 5,000 cycles |
PHYSICAL CHARACTERISTICS
| TOTAL MECHANICAL TRAVEL | 285°±5° |
| STARTING TORQUE | 35--100mN.m |
| STOP STRENGTH | 400mN.m |
Product Size
Application Areas
- Audio devices: Volume and tone control circuits
- Electronic instruments: Calibration for oscilloscopes and signal generators
- Communication equipment: Frequency and volume adjustment in radios and walkie-talkies
- Control systems: Precision resistance adjustment for sensors and actuators
- Automotive electronics: Audio and lighting system controls
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
