WX14-12 3w Single-turn Wire-wound Rv12mm Rotary Potentiometer
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান ， গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | Uchi |
| সাক্ষ্যদান: | SMC |
| মডেল নম্বার: | WX14-12 |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 100 পিসি |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| পরিশোধের শর্ত: | টি/টি, পেপ্যাল, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম |
| যোগানের ক্ষমতা: | প্রতি মাসে 50000000pcs |
|
বিস্তারিত তথ্য |
|||
| রেট পাওয়ার: | 3 ডাব্লু | প্রতিরোধ: | 1Ω~22KΩ |
|---|---|---|---|
| প্রতিরোধ সহনশীলতা: | ±5%, ±10% | আকার / মাত্রা: | 24*35 মিমি |
| খাদ ব্যাস: | 6 মিমি | পালা পরিবর্তন সংখ্যা: | 1 পালা |
| ঘূর্ণন জীবন (কোন লোড) চক্র: | 10000 | ঘূর্ণন কোণ: | 300° |
| বিশেষভাবে তুলে ধরা: | 3W wire-wound potentiometer,RV12mm rotary potentiometer,single-turn precision potentiometer |
||
পণ্যের বর্ণনা

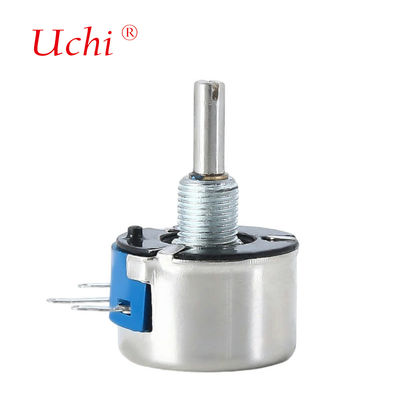

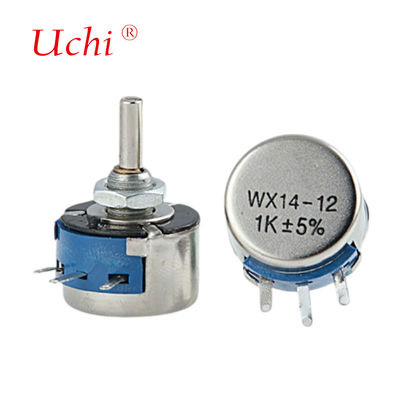

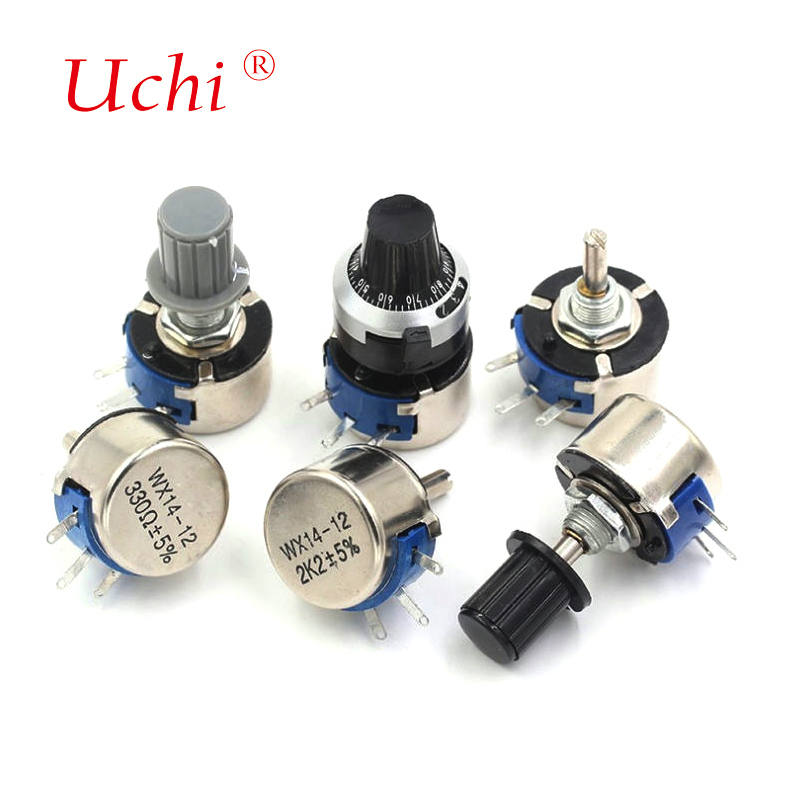

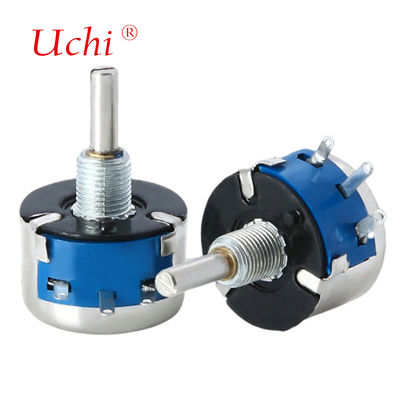

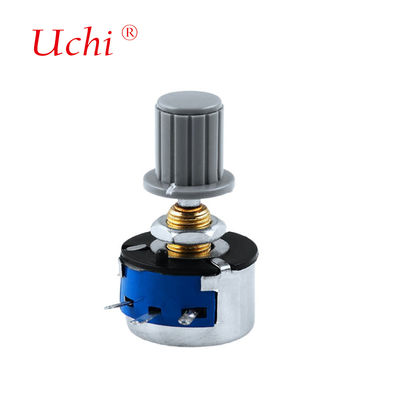

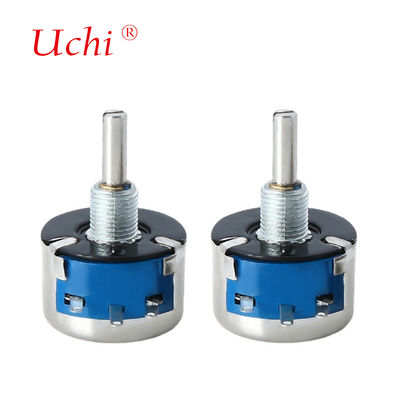

WX14-12 3W Single-turn Wire-wound RV12mm Rotary Potentiometer
The WX14-12 single-circle wire winding power unit features a power rating of 3W, axis diameter of 4mm, outer circular diameter of 24mm, and open hole of 8.3mm. With an accuracy of ±5% and knob angle of 300°, this potentiometer offers multiple resistance options from 27Ω to 20K.
Specification Parameters
| Product Name | Single turn wirewound potentiometer |
|---|---|
| Model | WX14-12 |
| Resistance | ±5%,±10% |
| Package Diameter | 24mm |
| Shape | Round |
| Number of Turns | 1 turn |
| Sealable | IP40 |
| Shaft | Nickel plated rail |
| Element | Wirewound |
| Terminal | Solder lug |
| Taper-Linear | X |
| Linearity | ±5%~±10% |
| Resistance-Minimum | 1Ω |
| Resistance-Maximum | 22k |
| Tolerance Resistance | ±5%/±10% |
| Power-Rating | 3W |
| Angle of Rotation | 300° |
| Rotational Life (No Load) Cycles | 10000 |
| Shaft Diameter | 4mm |
| Shaft Length | 20mm |
| Panel Diameter | 23mm |
Product Features
- Silver contact copper parts enhance frequency response and conductor performance
- Durable thick iron shell material provides high mechanical strength and weather resistance
- Multiple resistance options available with custom values upon request
Product Size
Application Area
The WX14-12 single coil wire wound potentiometer is primarily used for voltage or current adjustment. This wire-wound potentiometer features resistance wire wound on an insulated frame, with adjustable resistance via shaft rotation. Commonly used in audio equipment, power supplies, and other electronic devices for volume control and signal adjustment.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
-
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support. -
Could you provide samples?
Samples are available upon request after order placement. -
Can your product be customized?
We accept OEM/ODM orders with flexible requirements. -
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible. -
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
