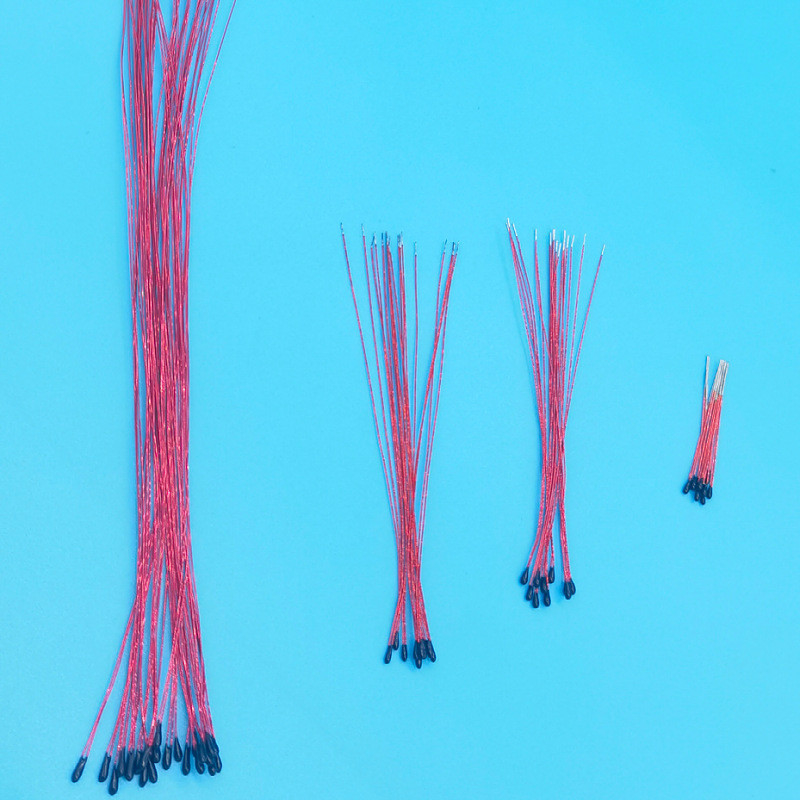

Epoxy Coated NTC Thermistor , Epoxy Resin Package Solid State Temperature Sensor
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান, গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | UCHI |
| সাক্ষ্যদান: | ROHS,SGS |
| মডেল নম্বার: | CWF103F-3950F |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1000 পিসি |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| প্যাকেজিং বিবরণ: | বাল্ক 500PCS/ব্যাগ |
| ডেলিভারি সময়: | 7 কার্যদিবস |
| Payment Terms: | T/T,Paypal,Western Union,Money gram |
| যোগানের ক্ষমতা: | প্রতি মাসে 8000,000,000PCS |
|
বিস্তারিত তথ্য |
|||
| মাউন্টের ধরন:: | কাস্টমাইজ করুন | সঠিকতা: | ±1% |
|---|---|---|---|
| বর্ণনা: | তাপমাত্রা পরিমাপ | Place of Origin:: | Guangdong, China |
| টাইপ: | এনটিসি থার্মিস্টর | প্যাকেজ / কেস:: | ইপোক্সি প্যাকেজ |
| বিশেষভাবে তুলে ধরা: | Epoxy Coated NTC Thermistor,Epoxy Resin Package NTC Thermistor,ROHS Solid State Temperature Sensor |
||
পণ্যের বর্ণনা
Epoxy-coated Interchangeable Type NTC Thermistor Solid State Temperature Sensor
Quick Detail:
Precision, solid state temperature sensor
Interchangeability down to ±0.18°F (±0.1°C)
Suitable for use over a range of -112°F to 302°F (–80°C to 150°C)
High sensitivity, greater than –4%/°C at 77°F (25°C)
Suitable for temperature measurement, control and compensation
High reliability and stability over an interchangeable range
Most popular Resistance (R) vs Temperature (T) curves are available
Resin-coated for good mechanical strength and resistance to solvents
Rugged construction
For DC95: .012 in (0.3mm) diameter bare tinned-copper lead wires
For EC95: .008 in (0.2mm) diameter bare tinned-alloy lead wires
For TK95: .010 in (.25mm) diameter PTFE insulated lead wires
Description:
Epoxy-coated, NTC interchangeable thermistor chips with bare tinned-copper lead wires.
Applications:
-
Extremely rugged sensor consisting of a hex head machine screw that can be fastened into drilled and tapped holes.
Specifications:
NTC Interchangeable Thermistor Chip
Epoxy-coated, NTC interchangeable thermistor chips with bare tinned-copper lead wires.
Options
|
Consult Factory for Availability of Options |
Other resistance values in the range of 1000 Ω to 100 kΩ |
|---|
Thermal and Electrical Properties
|
Dissipation Constant |
Still air: 1 mW/°C |
|---|---|
|
Thermal Time Constant |
Still air: 10 seconds |
|
Maximum Power at 77°F (25°C) |
75 mW |
De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)
Type EC95 Specifications
NTC Interchangeable Thermistor Chip
Epoxy-coated, NTC interchangeable thermistor chips with bare tinned 180 alloy lead-wires.
Options
|
Consult Factory for Availability of Options |
Other resistance values in the range of 1000 Ω to 100 kΩ |
|---|
Thermal and Electrical Properties
|
Dissipation Constant |
Still air: 1 mW/°C |
|---|---|
|
Thermal Time Constant |
Still air: 10 seconds |
|
Maximum Power at 77°F (25°C) |
75 mW |
De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)
Type TK95 Specifications
NTC Interchangeable Thermistor Chip
Epoxy-coated, NTC interchangeable thermistor chips with PTFE insulated nickel lead-wires.
Options
|
Consult Factory for Availability of Options |
Other resistance values in the range of 1000 Ω to 100 kΩ |
|---|
Thermal and Electrical Properties
|
Dissipation Constant |
Still air: 1 mW/°C |
|---|---|
|
Thermal Time Constant |
Still air: 10 seconds |
|
Maximum Power at 77°F (25°C) |
75 mW |
De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)
