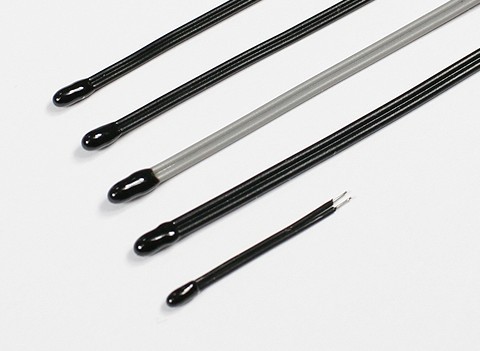

Flat High Temperature 10K NTC Temperature Sensor For Industrial 103F34-50W
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | Dongguan,Guangdong,China |
| পরিচিতিমুলক নাম: | UCHI |
| সাক্ষ্যদান: | ISO,ROHS |
| মডেল নম্বার: | 103F34-50W |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1000PCS |
|---|---|
| মূল্য: | Negotiable |
| প্যাকেজিং বিবরণ: | Bulk |
| ডেলিভারি সময়: | 7 workdays |
| পরিশোধের শর্ত: | T/T,Paypal,Western Union |
| যোগানের ক্ষমতা: | 50000000pcs/month |
|
বিস্তারিত তথ্য |
|||
| লক্ষণীয় করা: | thermocouple temperature sensor,ntc probe temperature sensor |
||
|---|---|---|---|
পণ্যের বর্ণনা
Flat High Temperature 10K NTC Temperature Sensor For Industrial 103F34-50W
Specifications
1. Electronics specifications
R25: 10K Ohm +/-1%
B 25/85 : 3435k+/-1%
Operating Temperature : -40~120degree
Dissipation constance : 7.5mW/C
Insulation resistance : DC500V >=100MOHM
Rated power : at 25deg,in still air 500mW
Thermal time constant : at 25deg,in still air 20sec
2. Overall dimensions
unite:mm
3. Environment Test
| ITEM | CONDITIONS | SPEC | SPEC | |
| 3-1 | High temperature storage | 125deg(AIR) 1000Hrs |
△R25 |
+/-1%<3% |
| 3-2 | Low temperature storage | -40deg(AIR) 1000Hrs |
△R25 |
+/-1%<3% |
| 3-3 | High humidity storage | 40deg/95%/240Hrs |
△R25 |
+/-1%<3% |
| 3-4 | Thermal shock | -40deg~125deg/5 cycles |
△R25 |
+/-1%<3% |
4. Inspection conditions
4-1 Sampling method : Apply to MIL-STD-05D
4-2 Level : Level 1 , AQL 1%
4-3 Check point and method
| Check point | Test method | Grade |
| Appearance and dimension | Refer to 5-2 | Important |
| Electrical characteristics | Refer to 5-3 | Very important |
| Mechanical characteristics | Refer to 5-4 | Very important |
| Environment test | Refer to 5-5 | Very important |
* Follow the special specification if another check point required .
