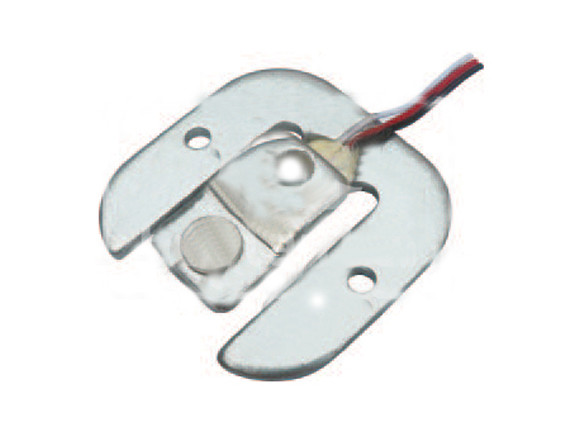

Thru Hole S Beam Load Button Micro Load Cells 50kg CZL932 scale weighing load cell

Thru Hole S Beam Load Button Micro Load Cells 50kg CZL932 scale weighing load cell

বড় ইমেজ :  Thru Hole S Beam Load Button Micro Load Cells 50kg CZL932 scale weighing load cell

পণ্যের বিবরণ:

পরিচিতিমুলক নাম: UCHI
সাক্ষ্যদান: SGS.ISO.
Model Number: CZL932


Minimum Order Quantity: 500pcs
মূল্য: Negotiable
Packaging Details: Bulk
Delivery Time: 14 workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500000pcs
বিস্তারিত পণ্যের বর্ণনা
Product name: Load Button Load Cells Zero Balance: +/-0.5 mV/V
Rated Output: 1.0+/-0.1 mV/V Linearity: +/-0.2%F.S
Hysteresis: +/-0.2%F.S Repeatability: +/-0.1%F.S
Creep: +/-0.1%F.S/3min Output(Input) Resistance: 1000+/-10 ohm
Temperature Range for Using: -10~40 deg C Four-Angle Error: 0.1%F.S
Temperature Effect on Zero: +/-0.3%F.S/10 deg C Temperature Effect on Sensitivity: +/-0.3%F.S/10 deg C
Insulation Resistance: ≥2000Mohm Excitation Voltage: 5~10VDC
Overload: 150% Accuracy: 0.2%F.S


Thru Hole S Beam Load Button Micro Load Cells 50kg CZL932 scale weighing load cell




A load cell is a force sensing module - a carefully designed metal structure, with small elements called strain gauges mounted in precise locations on the structure. Load cells are designed to measure a specific force, and ignore other forces being applied. The electrical signal output by the load cell is very small and requires specialized amplification. Fortunately, the 1046 PhidgetBridge will perform all the amplification and measurement of the electrical output.
Load cells are designed to measure force in one direction. They will often measure force in other directions, but the sensor sensitivity will be different, since parts of the load cell operating under compression are now in tension, and vice versa.
This Single Point Load Cell is used in small jewelry scales and kitchen scales. It’s mounted by bolting down the end of the load cell where the wires are attached, and applying force on the other end in the direction of the arrow. Where the force is applied is not critical, as this load cell measures a shearing effect on the beam, not the bending of the beam. If you mount a small platform on the load cell, as would be done in a small scale, this load cell provides accurate readings regardless of the position of the load on the platform.



Product specifications


1. Rated Load 50 kg
2. Rated Output 1.0±0.1mV/V
3. Zero Balance ±0.5%F.S
4. Input Resistance 1010±10Ω
5. Output Resistance 1010±10Ω
6. Excitation Voltage 5-10VDC
7. Nonlinearity 0.2%F.S
8. Hysteresis 0.2%F.S
9. Repeatability 0.1%F.S
10.Creep(30min) 0.1%F.S
11.Operating Temperature -10ºC To +40ºC
12.Temperature Effect on Zero 0.03%F.S/10ºC
13.Temperature Effect on Span 0.03%F.S/10ºC
14.Insulation Resistance ≥2000MΩ(50VDC)
15. Safe Overload 150%F.S
16. Accuracy 0.2%FS

NumberType="1" TCSC="0" w:st="on">5mm 4-wire shielding cable)



How they work


Strain-gauge load cells convert the load acting on them into electrical signals. The measuring is done with very small resistor patterns called strain gauges - effectively small, flexible circuit boards. The gauges are bonded onto a beam or structural member that deforms when weight is applied, in turn deforming the strain-gauge. As the strain gauge is deformed, it’s electrical resistance changes in proportion to the load.

The changes to the circuit caused by force is much smaller than the changes caused by variation in temperature. Higher quality load cells cancel out the effects of temperature using two techniques. By matching the expansion rate of the strain gauge to the expansion rate of the metal it’s mounted on, undue strain on the gauges can be avoided as the load cell warms up and cools down. The most important method of temperature compensation involves using multiple strain gauges, which all respond to the change in temperature with the same change in resistance. Some load cell designs use gauges which are never subjected to any force, but only serve to counterbalance the temperature effects on the gauges that measuring force. Most designs use 4 strain gauges, some in compression, some under tension, which maximizes the sensitivity of the load cell, and automatically cancels the effect of temperature.

Other types of load cell exist which have half bridges (2 strain gauges) or quarter bridges but they require additional hardware to operate since you must complete the bridge to get the most accurate readings.


What is a Wheatstone bridge?

A Wheatstone bridge is an electrical circuit used to measure and unknown resistance by balancing 2 legs of a bridge circuit. One leg of which contains the unknown value. Wheatstone bridges are made up of 4 resistors or loads in a square with a voltage meter bridging 2 corners of the square and power/ground connected to the other corners. In the case of a load cell, these resistors are strain gauges.
