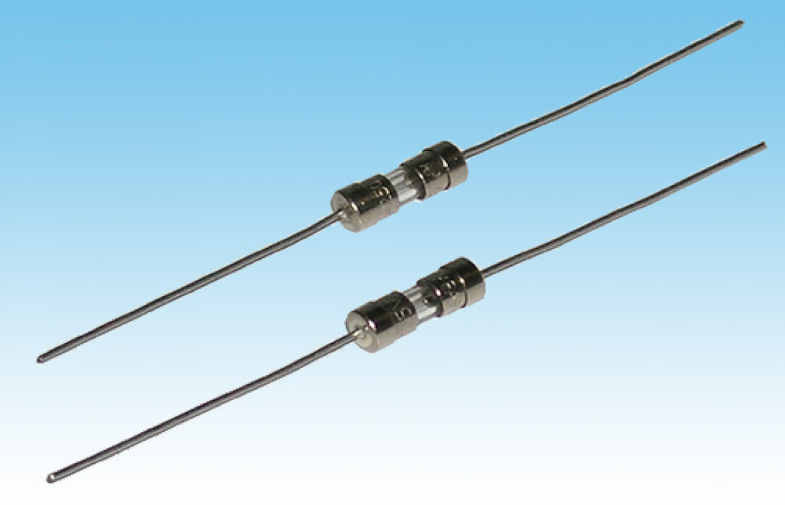

1A 250V 3.6x10mm Fast-acting Glass Auto Fuse , Electrical Fuse

1A 250V 3.6x10mm Fast-acting Glass Auto Fuse , Electrical Fuse

বড় ইমেজ :  1A 250V 3.6x10mm Fast-acting Glass Auto Fuse , Electrical Fuse

পণ্যের বিবরণ:

Place of Origin: Dongguan,China
পরিচিতিমুলক নাম: UCHI
সাক্ষ্যদান: UL/CQC/SGS/CUL/VDE/CSA/PSE
Model Number: F1A3610

প্রদান:

Minimum Order Quantity: 5000PCS
মূল্য: Negotiable
Packaging Details: Bulk 250 pcs in per poly bag; 10 poly bags in per inner box; 4 inner boxes in per outer carton
Delivery Time: 4~6 days
Payment Terms: T/T & Paypal &Western Union
Supply Ability: 100,000,000PCS per month
বিস্তারিত পণ্যের বর্ণনা

1A 250V 3.6x10mm Fast-acting Glass Auto Fuse , Electrical Fuse



Quick Detail:



  • Designed to UL/CSA 248 Standard.
  • Fast-Acting, glass body fuse in a compact package.
  • This space saving fuse is ideally suited for lighting, power supply, and adapter applications.




Description:





Glass fuse is an electric element protecting electric devices. It is commonly connected with a circuit in series, and when fault current increases to a certain value, the fuse blows out to cut off the circuit so as to fulfill an aim of protecting other equipment in the circuit. The fuse is the most commonly used component in a over-current protection circuit. The traditional fuse mainly consists of two parts of a tube body, of which both ends have metal connecting terminals, and metal melt in the tube body. The majority of fuses are cylinder-shaped, namely cartridge construction. But nowadays, with the fast development of advanced technology, some special materials are well applied, the fuse industry has started to move forward in the direction of sub-miniature products and a series of new products such as Surface Mounted Devices type fuse are successively developed.





Applications:





Glass Fuse is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Lighting, Power supply and Adapter applications, etc.





Specifications:



Dimension

ELECTRICAL CHARACTERISTICS:

% of Ampere Opening Rating Time
100%  4 hours, Minimum
200%  5 seconds, Max.

AGENCY APPROVALS: Listed by Underwriters
Laboratories and Certified by CSA from 0.050 through 10 Amps.

INTERRUPTING RATING:
50A@250V AC

PACKAGING OPTIONS:
Please refer to the following suffixes when ordering:
Bulk (1000 pieces): Add MXE suffix to the catalog part number.
Tape and Reel (1500 pieces): Add DRT4 suffix to the catalog part number.

TAPE AND REEL SPECIFICATIONS:
Per EIA-296 with 10mm pitch and 56.5mm
inside tape spacing.



Competitive Advantage:



1. Factory supply directly

2. Completed certificates such as UL,VDE,TUV,etc and high quality available

3. Quick delivery

4. Best after-sales services

5.     OEM & ODM available
