1K NTC Thermistor

পণ্যের বর্ণনা

1K NTC Thermistor

Quick Detail:

• Good stability and repeatability

• High reliability

• Wide range of resistance: 0.1~1000KΩ

• Tight tolerance on resistance and Beta values

• Usable in high-temperature and high-moisture

 environments

• Small, light, strong package,

• Suitable for automatic insertion on thru-hole PCBs

• Rapid response

• High sensitivity

Description:

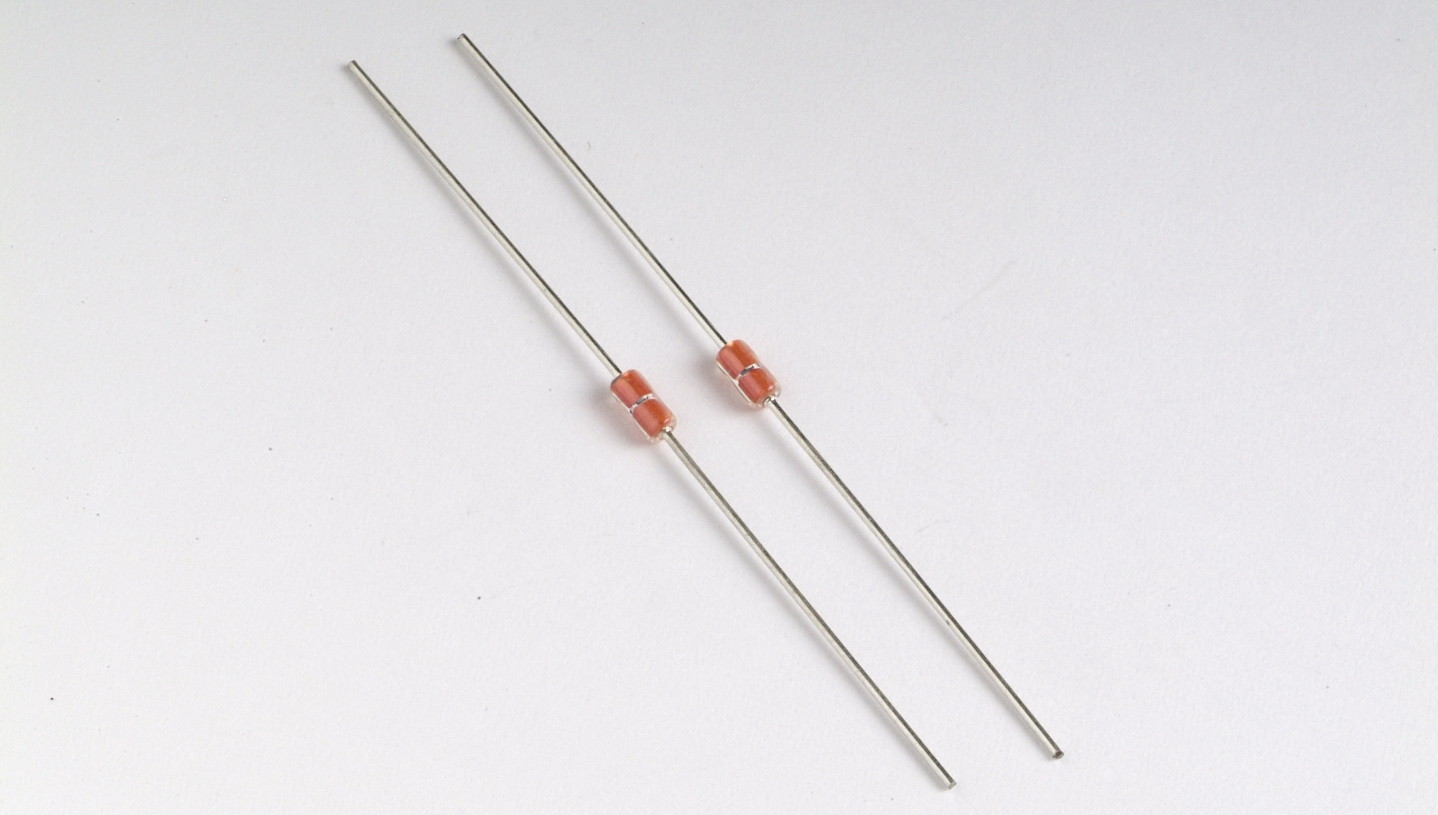

Glass Shell Precision NTC Thermistors

The MF58 is a NTC thermistor which is manufactured using a combination of ceramic and semiconductor techniques. It is equipped with tinned axial leads and then wrapped with purified glass.

Applications:

Temperature compensation and detection for:

• Household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.)
• Office equipment (copiers, printers etc.)
• Industrial, medical, environmental, weather and food processing equipment
• Liquid level detection and flow rate measurement
• Mobile phone battery
• Apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.

Specifications:

Main Techno-Parameter:

• Zero power resistance range (R25): 0.1~1000KΩ

• Available tolerances of R25:

 F=±1% G=±2% H=±3% J=±5% K=±10%

• B value (B25/50°C) range: 3100~4500K

• Available tolerances of B value: ±0.5%, ±1%, ±2%

• Dissipation factor: ≥2mW/°C (In Still Air)

• Thermal time constant: ≤20S (In Still Air)

• Operating temperature range: -55°C ~ +200°C

• Rated Power: ≤50mW

Competitive Advantage:

1. Factory supply directly
2. Completed certificates such as UL,VDE,SGS,etc and high quality available
3.  Quick delivery
4. Best after-sales services
5. OEM & ODM available
