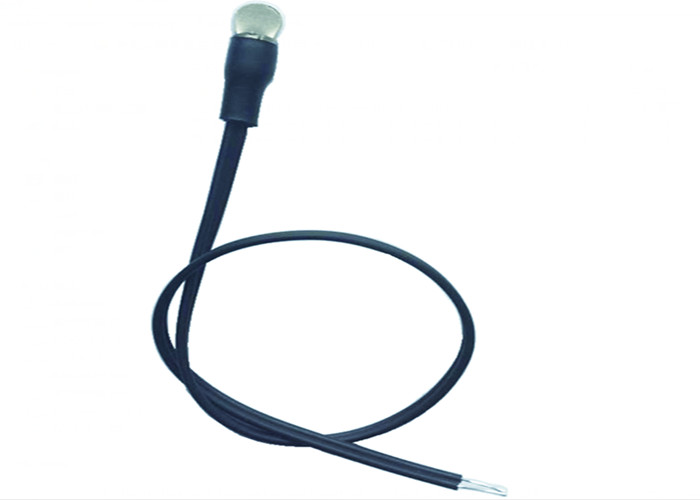

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4

পণ্যের বিবরণ:

Place of Origin: Dongguan,Guangdong,China
পরিচিতিমুলক নাম: UCHI
সাক্ষ্যদান: ROHS,UL
Model Number: CWF 4

প্রদান:

Minimum Order Quantity: 1000PCS
মূল্য: Negotiable
Packaging Details: Standard export package
Delivery Time: 7~14 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50000000pcs per month
ভালো দাম যোগাযোগ

বিস্তারিত তথ্য

সমাবেশ: লেসার ঢালাই, অতিস্বনক ঢালাই প্রয়োগ: লিথিয়াম ব্যাটারি তাপমাত্রা নিয়ন্ত্রণ মডিউল প্রযোজ্য
জিরো শক্তি প্রতিরোধের সহনশীলতা 25deg এ: ± 1% বি মান সহনশীলতা: ± 1%
হেড উপাদান: নিকেল ধাতুপট্টাবৃত পিতল ওয়্যার উপাদান: পিভিসি, FEP
ভোল্টেজ প্রতিরোধ: ≥1500VAC অপারেটিং তাপমাত্রা: -40 ~ + + 105degC / + + 125degC
লক্ষণীয় করা:

thermocouple temperature sensor

,

ntc probe temperature sensor

পণ্যের বর্ণনা



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4





Description



Thermistor is a ceramic semiconducting element made from exorbitant oxides material. It
has the feature that the resistance changes according to the ambient temperature.Namely,
their resistance declines with the rising of ambient temperature at a determinate measuring

power.With this feature NTC thermistor and temperature sensor can be applied in the

situation of temperature measurement and control,compensation and surge current protection.



PDF File :



NTC Temperature Sensor Profile 1 of 2.pdf



NTC Temperature Sensor Profile 2 of 2.pdf





Dimension(unit:mm)



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 0





Series: CWF 4



Application: apply to temperature control module of lithum battery
Assembly: Laser welding,ultrasonic welding





Technical specifications:



  • Zero power resistance tolerance at 25deg: ±1%
  • B value tolerance: ±1%
  • Head material: Nickel plated brass
  • Wire material : PVC,FEP
  • Withstand voltage : ≥1500VAC
  • Operating temperature: -40~+105degC/+125degC





Chips-NTC thermistor used



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 1





Features



  1. Moisture proof,waterproof
  2. Easily assemble, stable
  3. Resistance,B-value can be customized
  4. Metal part and wire can be customized





Workshop of high quality and high performance NTC Thermistor



We have the unique process and leader core technology with proprietary intellectual property rights of ceramic powder equipment,made of chips,high performance NTC Automatic batch production.
We have more than 12 series of high performance NTC thermistors automatic production line,products have the advantages of large production,high quality,good coherence,high reliability,besides it can be made of many kinds of NTC temperature sensors,it also can be supplied to other factories of NTC sensors,and exported in large quantities to overseas.



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 2

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 3
Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 4 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 5





Part numbering



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 6





Normal models



CWF1

Epoxy resin coating



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 7

CWF2 Aluminum,

copper,

stainless steel cap



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 8

CWF3 Plastic cap





Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 9

CWF4 Fixed sheet metal



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 10

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 11







CWF5 Special shape





Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 12

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 13









NTC Temperature sensor -- a glance at workshop



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 14

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 15

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 16





Advantages and characteristics of Auto Temperature Sensor



  • We have the heart of NTC temperature sensor--full sets of production line and core technology of pro-prietary intellectual property rights for high performance temperature measurement NTC thermistor.
  • We have all kinds of NTC core element of NTC Temperature sensor--high performance temperature measurement thermistors are own production,complete series,structural diversity. Our products can meet the requirements of prevision measurement in different temperature area from low temperature,medium and low temperature to medium-high temperature.These products have passed many safety certifications of domestic and foreign.
  • Resistance and temperature characteristics can meet customer's requirements entirely,and support best convenience to customers.
  • Mature manufacturing technique of NTC temperature sensor,Large-scale mass production,product have the best ability of insulation sealing,Mechanical collision,resistance to bending,well-set.
  • Small thermal time,fast response
  • Multi category,complete series,many kinds of housing he configuration,easy to assemble
  • We have high lavel inspection equipments which carrry out strict and normative inspection process.
  • Our products with high precision,high reliability,high stability,high interchangeable,high commonality are advanced in industry.

(Highest tolerance can be reach ±0.02℃) (Years of drif rate ≤1‰)





Operating temperature and environment of NTC temperature sensor depend on specific performance of its core element and lead wire:



►Different NTC thermistor using in the NTC temperature sensors with the following different operating temperature:



Chip or MF52A,MF51E,MF55: temperature resist grade 125℃,actual temperature resist grade 150℃
MF58: temperature resist grade 200℃,actual temperature resist grade 250℃
MF51: temperature resist grade 200℃,actual temperature resist grade 250℃
Special MF51: temperature resist grade 250℃,actual temperature resist grade 300℃
Weldless chip:temperature resist grade 450℃,actual temperature resist grade 500℃



►Operating environment



In the environment of high temperature,high humidty and high corrosion,we suggest to use glass sealed type thermistor as the core element.And MF51 type will be the best NTC thermistor in high humidity environment.



►Design considerations and procedure of temperature sensor:



1. Choose the shape acoording to customer's design or assemble requirements, and confirm the thermistor.
2. Confirm the thermistor element and other materials according to customers' requirement
3. Choose the suitable resistance,B value and tolerance
4. Choose suitable moisture-proof and insulation technology to meet customer's requirement
5. Choose suitable encapsulation structure to meet performance requirements of mechanical shock resistance
6. Meet customer's special requirements.





Reliability Test



Test Item Test Standard Test method Performance requirements
Zero Power Resistance IEC 60539-1 Immerse samples in the constant temperature bath at 25℃±0.005℃,test steady resistance

Resistance tol ±1%



B value IEC60539-1 Immerse samples in the constant temperature bath at 25℃,50℃(or 85℃), test steady resistance,and calculate B value

Resistance tol ±1%



Free fall

IEC60068-2-32



Fall height: 1.5±0.1m,Surface: Cement , 1 time

No obvious damage, R25 △R/R≤±1%



Insulation

IEC60539-1



500V pressure on insulation shell test insulation resistance

>500MOhm



Withstand voltage IEC60539-1

Withstand voltage: 1500V/AC ,Leakage current:2mA Lasting: 60sec



No obvious damage



Tension IEC60068-2-21

Pull uniform speed at the end, F>4.0KG(requested by customer)



No obvious damage, R25 △R/R≤±1%



Vibration Q/HBm 108-94 Test frequency: 10~500Hz,swing: 1.2mm acceleration: 30m/s2 Direction X,Y,Z Time:8Hour/direction

No obvious damage, R25 △R/R≤±1%



Steady humidity and heat IEC60068-2-78 Temp:40±2℃ Humidity:92-95%RH Time:1000±24Hour

No obvious damage, R25 △R/R≤±1%



Thermal time constant EC60539-1 Immerse in 25℃ water,after thermal balance,immerse in 85℃,resistance arrives 63.2%,calculate total time

<10 sec



High temperature storage IEC60068-2-2 Temp:125℃±5℃ Time: 1000±24Hour No obvious damage, R25 △R/R≤±1%
Cold and thermal shock IEC60068-2-14

-40℃~+125℃ T1:30min Cycle time:1000



No obvious damage, R25 △R/R≤±1%



Knock experiment IEC60068-2-77

Acceleration:250m/s2 Pulse lasting: 6ms Knock times: 1000 Recovery time: 2 Hour



No obvious damage, R25 △R/R≤±1%



Low temperature storage IEC60068-2-1

Temp: 40±2℃ Time: 1000±24Hour



No obvious damage, R25 △R/R≤±1%



Salt spray IEC60068-2-11 Temp: 35±2℃ Collection hour : 1.0mL~2.0mL Time: determine per as actual demand

No obvious damage, R25 △R/R≤±1%







Introduction of test and inspection equipments



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 17





Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 18

Name: High/Low-Thermal Shock Chamber

Function:test product withstand high/low-thermal shock chamber

Name : Constant temperature and humidity chamber

Function: test products storage state under steady damp and heat

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 19



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 20



Name : Vibration testing equipment

Function : test the effect on product during transportation generated by vibration frequency and amplitude

Name : Salt spray test machine

Function: Test product resistance to oxidation,corrosion

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 21 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 22

Name : Laser particle size analyzer

Function : Analyse material of laser particle size

Name : Vacum & high temperature dry oven

Function : high temperature aging test

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 23 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 24

Name : Spectrum analyzer

Function : analyze harmful substance content of products

Name : Electrolytic thickness gauge

Function : Used for testing coating thickness of raw material

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 25 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 26

Name : Constant temp oil bath instrument

Function : test ambient temperature at constant point resistance (tolerance ±0.002℃)

Name : Low Temperature precision test sink

Function : Test temperature at constant point resistance during -70℃~0℃ (tolerance ±0.01℃)

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 27 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 28

Name : DC constant voltage and constant current power supply (high current)

Function : Test U-I Curve

Name : High precision thermistor sorter

Function : Test resistance of thermistor

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 29 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 30

Name : Dissipation and thermal time constant testing instrument

Function : Test dissipation and thermal time constant

Name : NTC Impact tester

Function : Test impulse capacitance which products can endure

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 31 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 32

Name : Withstand voltage test instrument

Function : Test insulation withstand voltage

Name : DC constant voltage power supply

Function : Test rated power consumption



Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 33 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 34

Name : Projector

Function : Test out appearance and inner structure

Name : Elongation rate instrument

Function : Test elongation rate of leads

Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 35 Laser Welding Ultrasonic Welding Nickel Plated Brass NTC Thermistor Temperature Sensor CWF 4 36

Name : Overload aging test machine

Function : Electricity aging test of temp measurement products

Name : Chemical experiment table

Function : Chemical blending
